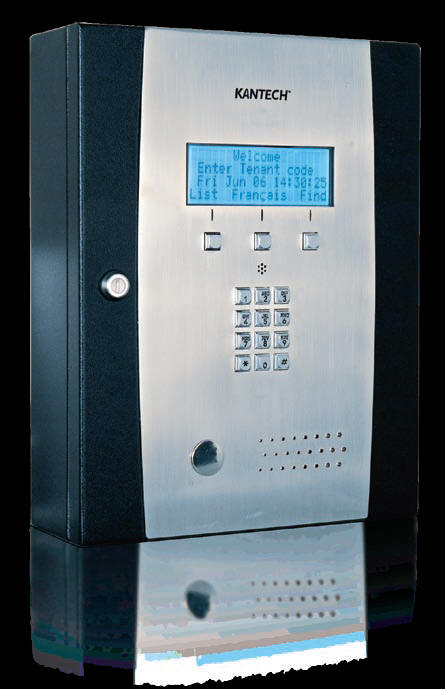

Model TES
Telephone Entrance System
$ 3,447.00
Designed with integration in mind, the Telephone Entry System (TES) is ideally suited for applications with an existing access control system or those that simply need telephone access only. An attractive vandal- and weather-resistant metal enclosure features a large four-line, 20-character backlit LCD and contextual function buttons allowing visitors to easily scroll through an electronic directory of tenants. Tenants communicate with visitors using the KTES and can grant or deny admittance directly from a telephone land line or cellular phone with the touch of a button. The stand-alone unit controls one door, three auxiliary relays, and supports postal lock and REX access. For larger commercial installations, the KTES integrates with EntraPass software and Kantech door controllers to provide a complete access control system. The system comes complete with a simplified version of EntraPass software for fast configuration and firmware upgrades, live transaction monitoring, and system backup. And, Wiegand inputs and outputs allow the system to be connected to external door controllers. For added convenience, the KTES maintains a local event log which can be viewed directly on the LCD. If a more detailed event log is needed, the system also reports all events directly to the EntraPass system. Product Image Physical
Surface Mount Dimensions
(H x W x D) . . . . . . . . . . . . . . 29.21 x 37.46 x 9.91 cm (11.5 x 14.75 x 3.90 in)
Weight . . . . . . . . 7 kg (15.4 lb)
Mounting . . . . . . . . Surface, flush, or goose-neck mount
Construction . . . . . . . . . . . . . 14 gauge stainless steel mounted on 16 gauge box,
black Epoxy paint weather-resistant finish, waterproof
fiber material speaker, and high quality

Operational Capacity . . . . . . . . . . . . . . . .
Up to 3,000 tenants; 4,000 events transaction memory
in stand-alone; 1- to 5-digit tenant ID, 4- to 6-digit
tenant PIN; two telephone numbers per tenant with up
to 24 digits Display . . . . . .

Large, vandal-resistant 4-line x 20-character LCD with
high contrast and backlighting

Programming . . . . . . .
Directly from keypad, or remotely with EntraPass
software via modem, Ethernet, or RS-485

Welcome Message . . .
Customizable language; variable display time of 0-255
seconds

Call Length . . . . .
Programmable from 10 seconds to one hour

Telephone Line . . . . . . .
Standard touch-tone or rotary (up to 5 units on the same line)

Access Control Interface . .
Wiegand

Monitored Inputs . .
Four; individually configurable as single end-of line (EOL), double EOL, and without EOL Inputs

Maximum Wiring . . .
#22 AWG, 600 m (2,000 ft)

Reader Outputs . . . .
Two (LED and BUZZ), 25 mA max. each; open collector outputs

Communication Ports . . . . .
Ethernet 10/100Base-T with RJ-45, RS-485, and international interface for telephone line

Communication Speed Ethernet . . . . . . . . . . . .
10/100Base-T, RS-485 . . . . . . . .Up to 115,200 baud
